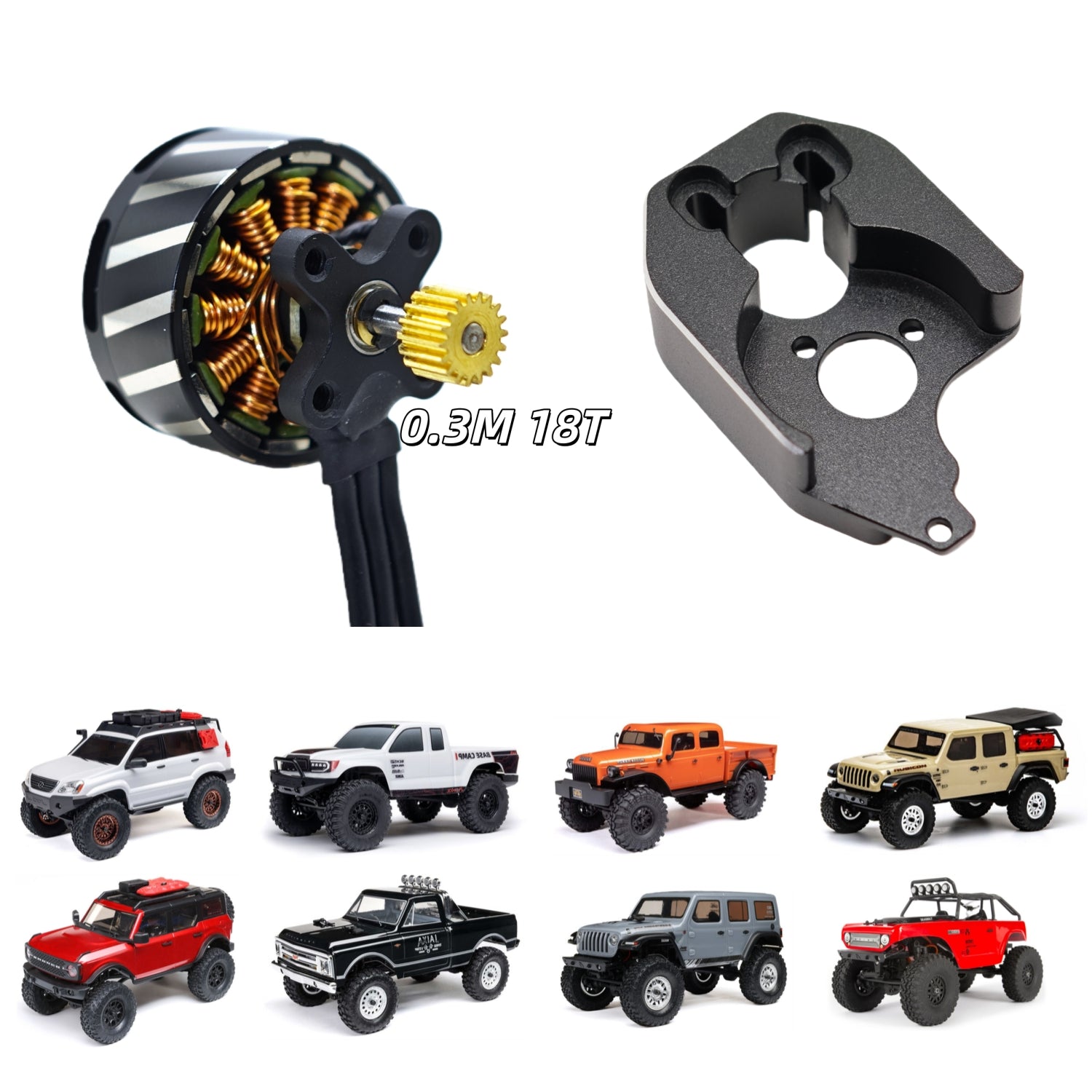

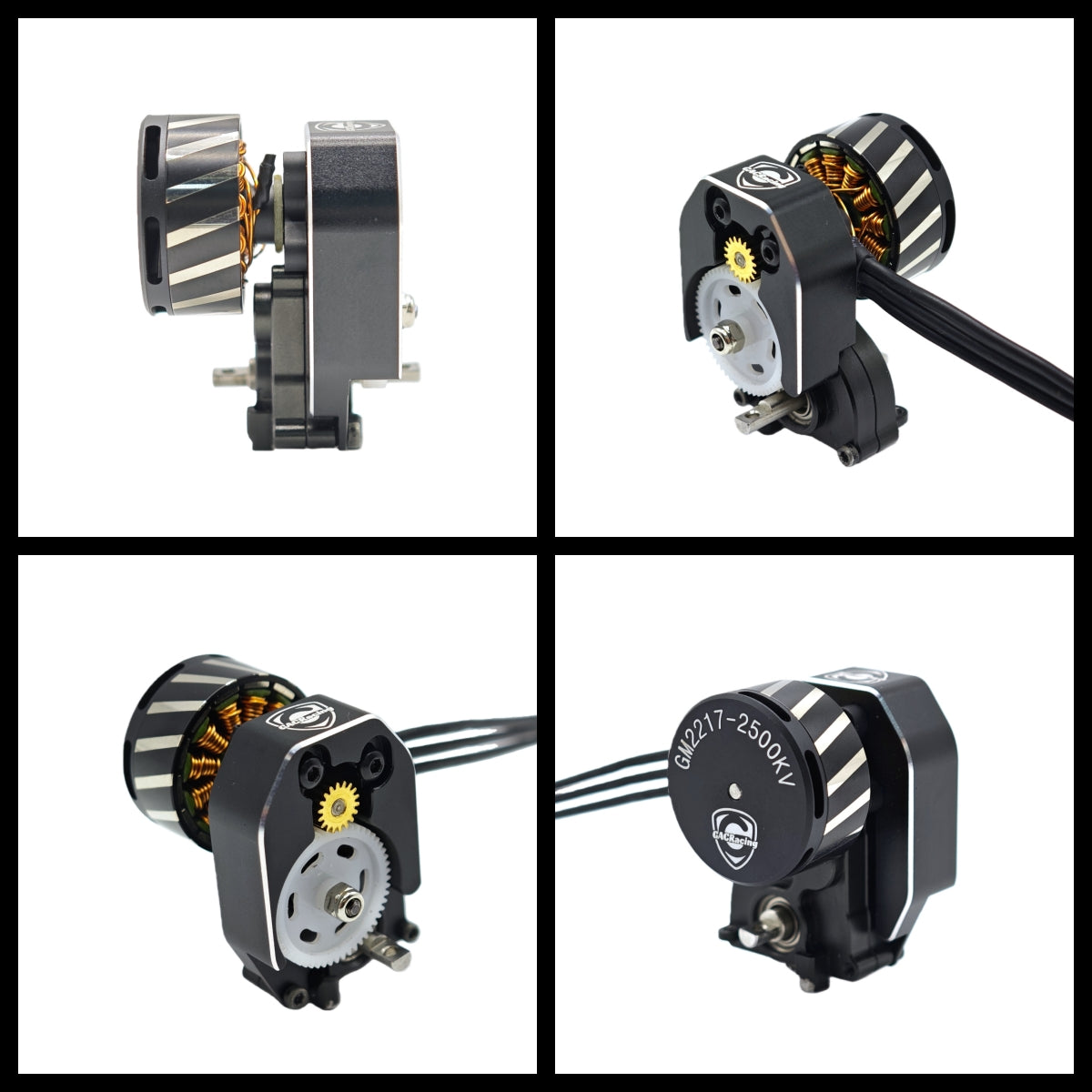

GM2217 Brushless Motor for SCX24 with Reverse motor mount

GM2217 brushless motor has a 14 pole 12 slot high torque motor setting.This design will provide the best performance for your Crawler

The unique motor output line is reinforced and fixed with a PCB board.

Specifications：

-KV(RPMMOTOR): 2500KV

-VOLTAGE(BATTERY): 2S~4S

-MOTOR POLES: 14

-CONNECTION TYPE: PH2.0 3P

-MOTOR SIZE: 22X17MM

-SHAFT/EXTEND LENGTH: φ2x9mm

-WEIGHT: 17g

-Gear ratio: ≥40

Package Included:

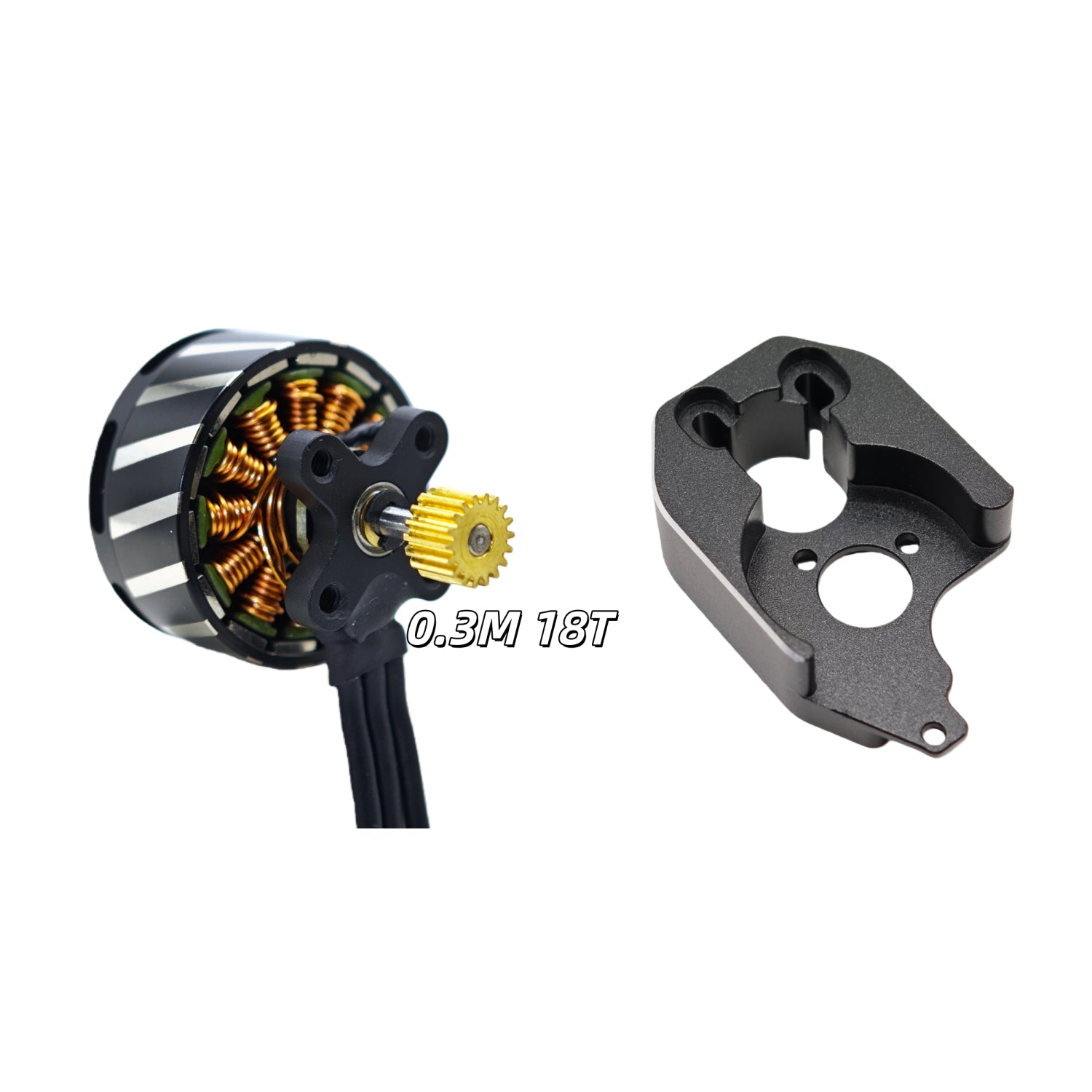

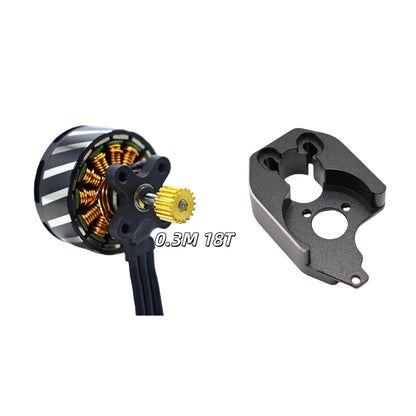

·(1) GM2217 Brushless Motor

·(1) 0.3M 18T Brass Pinion Gears

·(1) 12.4mm hole Reverse motor mount for SCX24

Disclaimer: The GM2217 Brushless Motor is not compatible with the stock Motor Plate and ESC from the SCX24
