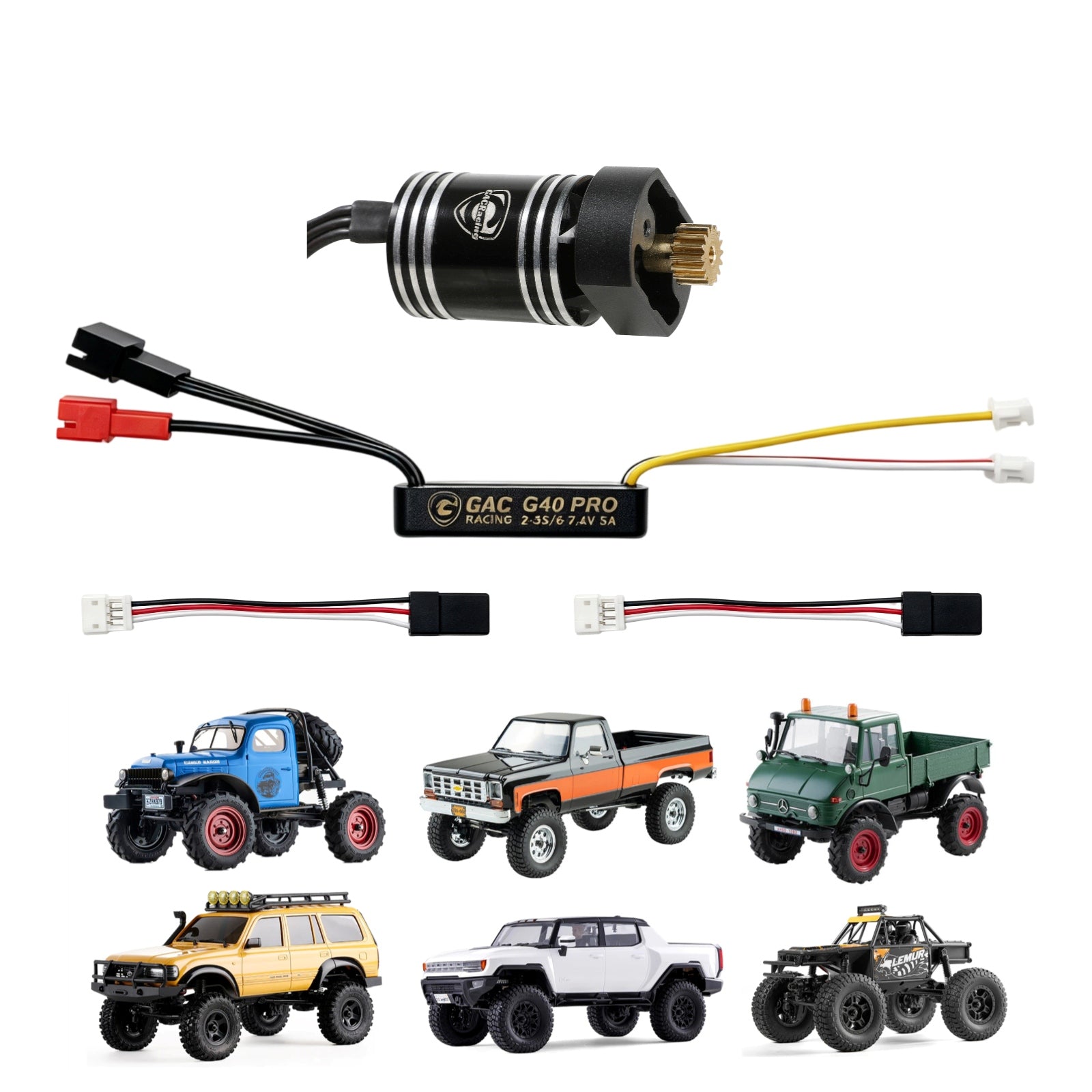

GM1825 and G40 PRO Power System for FCX24/18
GM1825 and G40 PRO Power System for FCX24/18
Couldn't load pickup availability
G40 PRO Nano ESC
Advanced FOC Technology. Precision Control. Built for Crawling.
Designed specifically for small-scale RC crawlers, the G40 PRO Nano ESC combines advanced FOC technology with intelligent tuning and versatile control features. Its optimized control algorithm delivers impressive low-speed torque and exceptionally smooth throttle response, giving you the precision and confidence needed to conquer challenging terrain.
1. Advanced FOC Field-Oriented Control Technology
More Torque. Smoother Control. Better Crawling Performance.
Powered by advanced FOC (Field-Oriented Control) technology, the G40 PRO Nano ESC features an optimized control algorithm designed specifically for small-scale crawling vehicles.
It delivers enhanced torque at low RPMs and exceptionally smooth motor operation, allowing for precise throttle control when navigating technical obstacles, climbing rocks, and tackling challenging terrain.
Experience greater control where it matters most.
2. Real-Time Adjustable Drag Brake
Take Full Control of Your Crawling Experience.
Fine-tune your drag brake strength on the fly to match different terrains and driving conditions.
Simply connect the yellow signal wire to an auxiliary receiver channel, and adjust the drag brake strength directly through your transmitter.
No need to stop or reconnect your phone. Enjoy instant control whenever you need it.
3. Built-In Bluetooth Wireless Tuning
Your Settings. Your Way. Anytime.
With built-in Bluetooth connectivity, the G40 PRO Nano ESC allows you to fine-tune ESC parameters wirelessly through the GACRacing App.
Easily access and adjust your settings directly from your smartphone, making it simple to customize performance to match your driving style and terrain.
No additional programming card required.
4. IP67 Waterproof & Dustproof Protection
Ready for Any Terrain.
Built to handle the demands of outdoor crawling, the G40 PRO Nano ESC features IP67-rated waterproof and dustproof protection.
Whether you’re driving through muddy trails, dusty environments, or wet conditions, its protective design helps keep your electronics safe and your crawler performing reliably.
5. Powerful Built-In 5A BEC
More Power. Greater Compatibility.
Equipped with a high-performance switching BEC, the G40 PRO Nano ESC delivers up to 5A of output current to reliably power your receiver and servo.
Choose between selectable 6V and 7.4V output to support a wide range of standard and high-voltage servos.
BEC voltage can be conveniently adjusted through the GACRacing App.
G40 PRO Nano ESC Specifications
| Specification | Details |
| Input Voltage | 2S–3S LiPo |
| Control Technology | FOC Field-Oriented Control |
| BEC Output Voltage | 6V / 7.4V Selectable |
| BEC Maximum Current | 5A |
| Wireless Tuning | Built-in Bluetooth |
| Mobile App | GACRacing App (iOS & Android) |
| Waterproof Rating | IP67 |
| Adjustable Drag Brake | Real-Time via Receiver |
| Required Radio Equipment | Standard 2-Channel Transmitter & Receiver |
GM1825 Motor Specifications:
-KV(RPMMOTOR): 3500KV
-VOLTAGE(BATTERY): 2S~3S
-MOTOR POLES: 12
-CONNECTION TYPE: PH2.0 3P
-MOTOR SIZE: 18X25MM
-SHAFT/EXTEND LENGTH: φ2x9mm
-WEIGHT: 20g
-Gear ratio: ≥80
