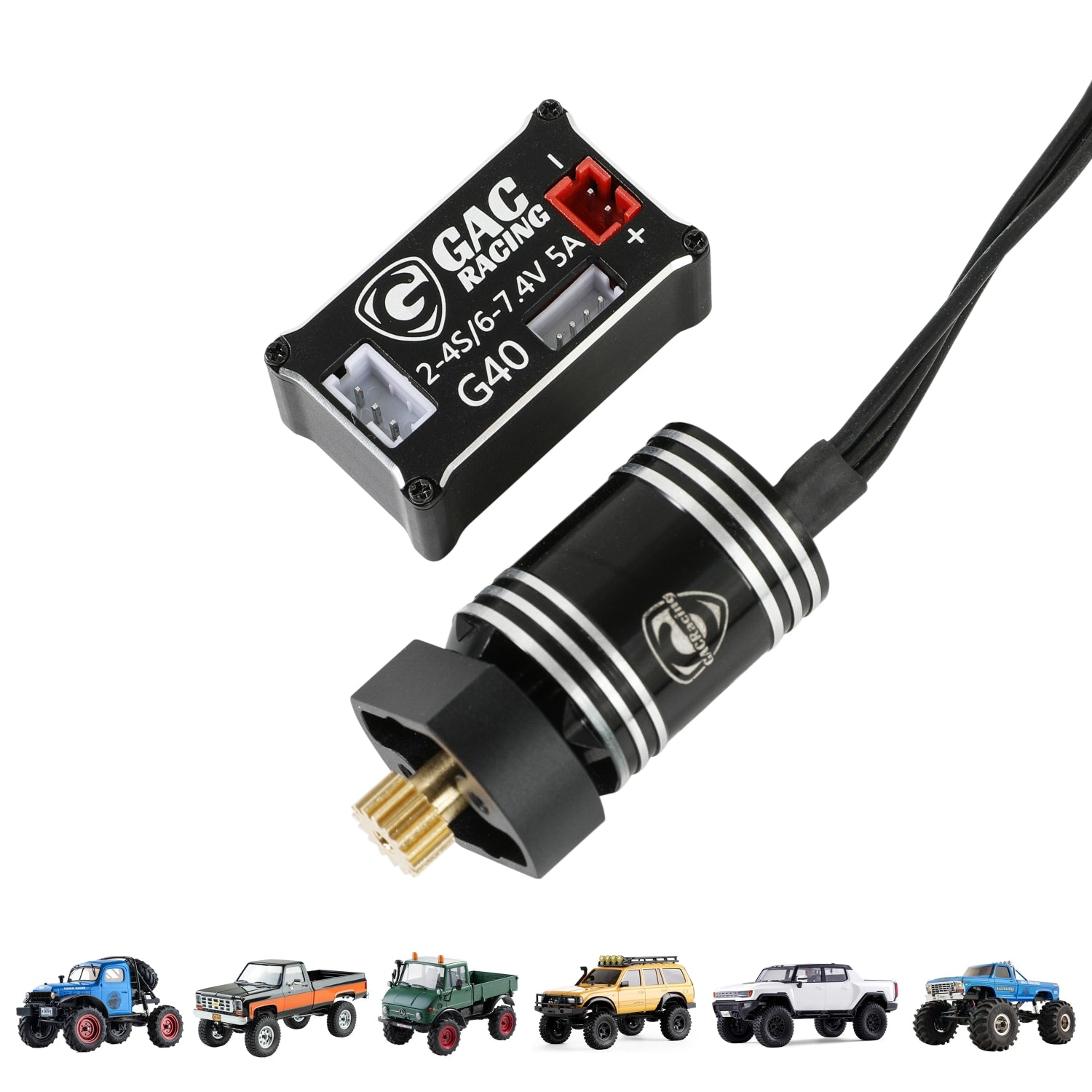

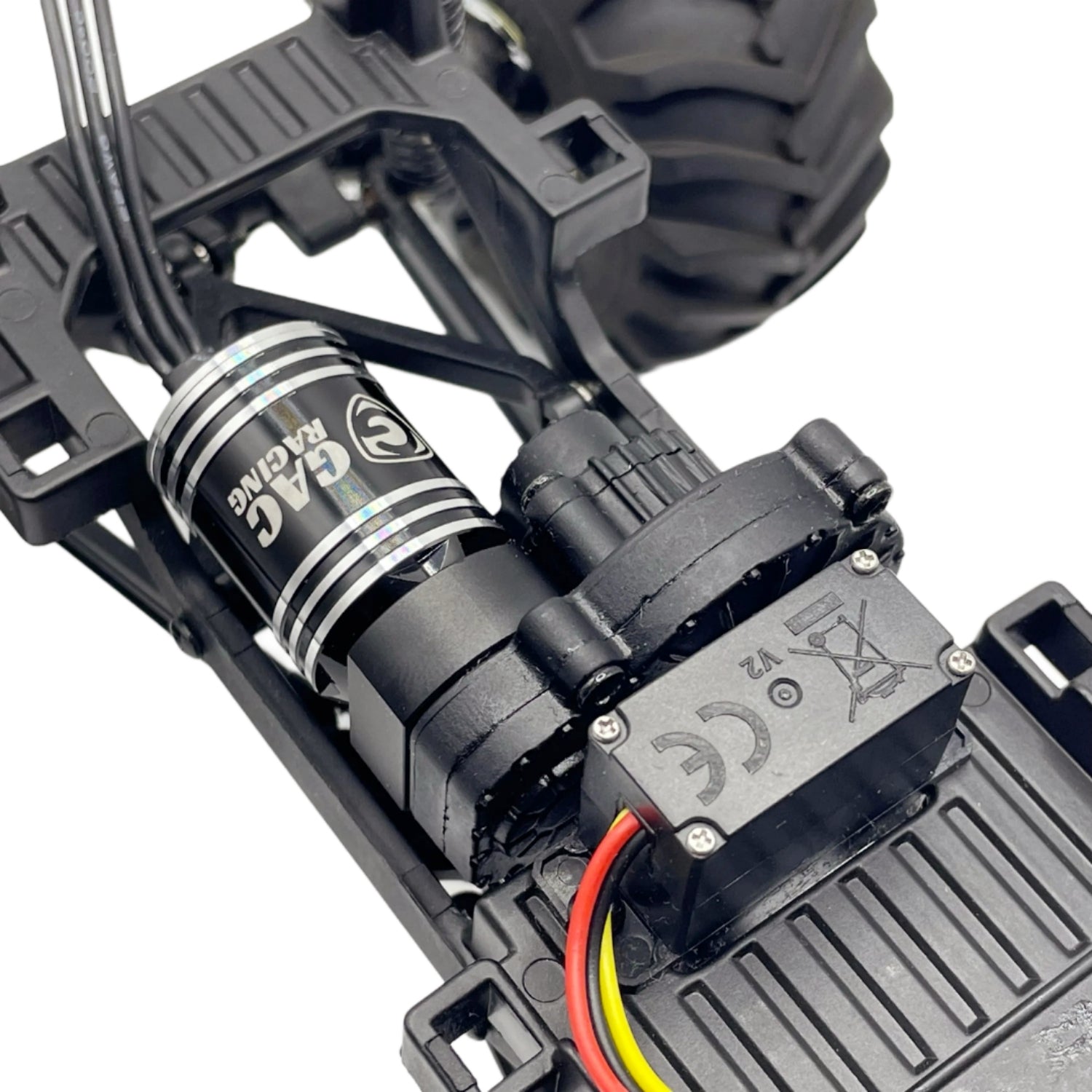

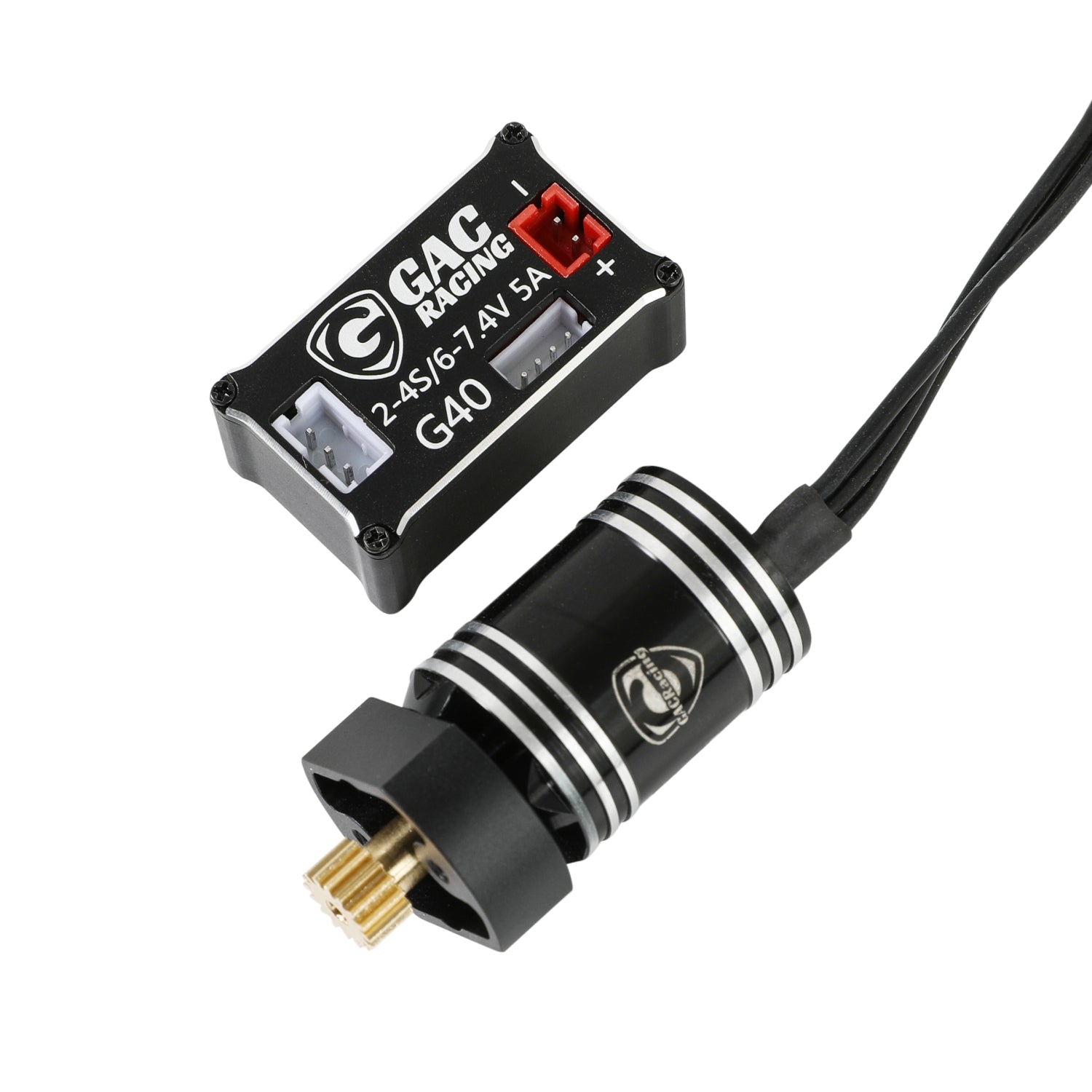

GM1825 and G40 Power System for FCX24 18

ESC Specifications：

- Supports 2-4S lipo batteries

- 6V/7.4V 5A Built-in BEC (config via app)

- current: 40A

Extra Requirements：

- A new Two-channel radio system

Motor Specifications：

-KV(RPMMOTOR): 3500KV

-VOLTAGE(BATTERY): 2S~3S

-MOTOR POLES: 12

-CONNECTION TYPE: PH2.0 3P

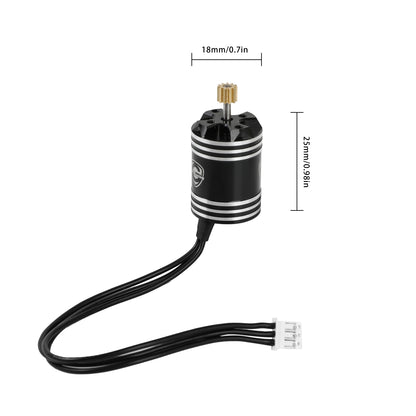

-MOTOR SIZE: 18X25MM

-SHAFT/EXTEND LENGTH: φ2x9mm

-WEIGHT: 20g

-Gear ratio: ≥80

Package Included:

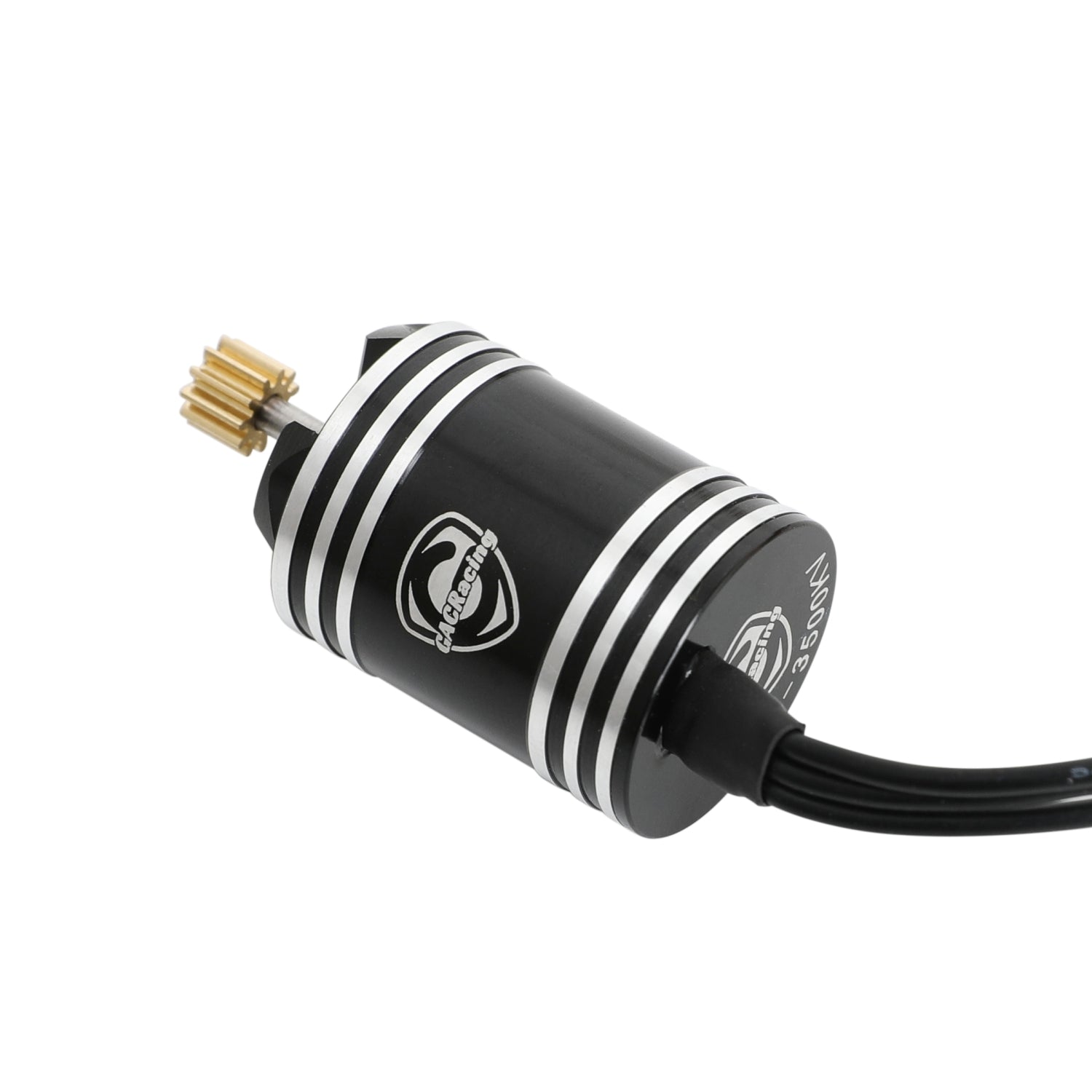

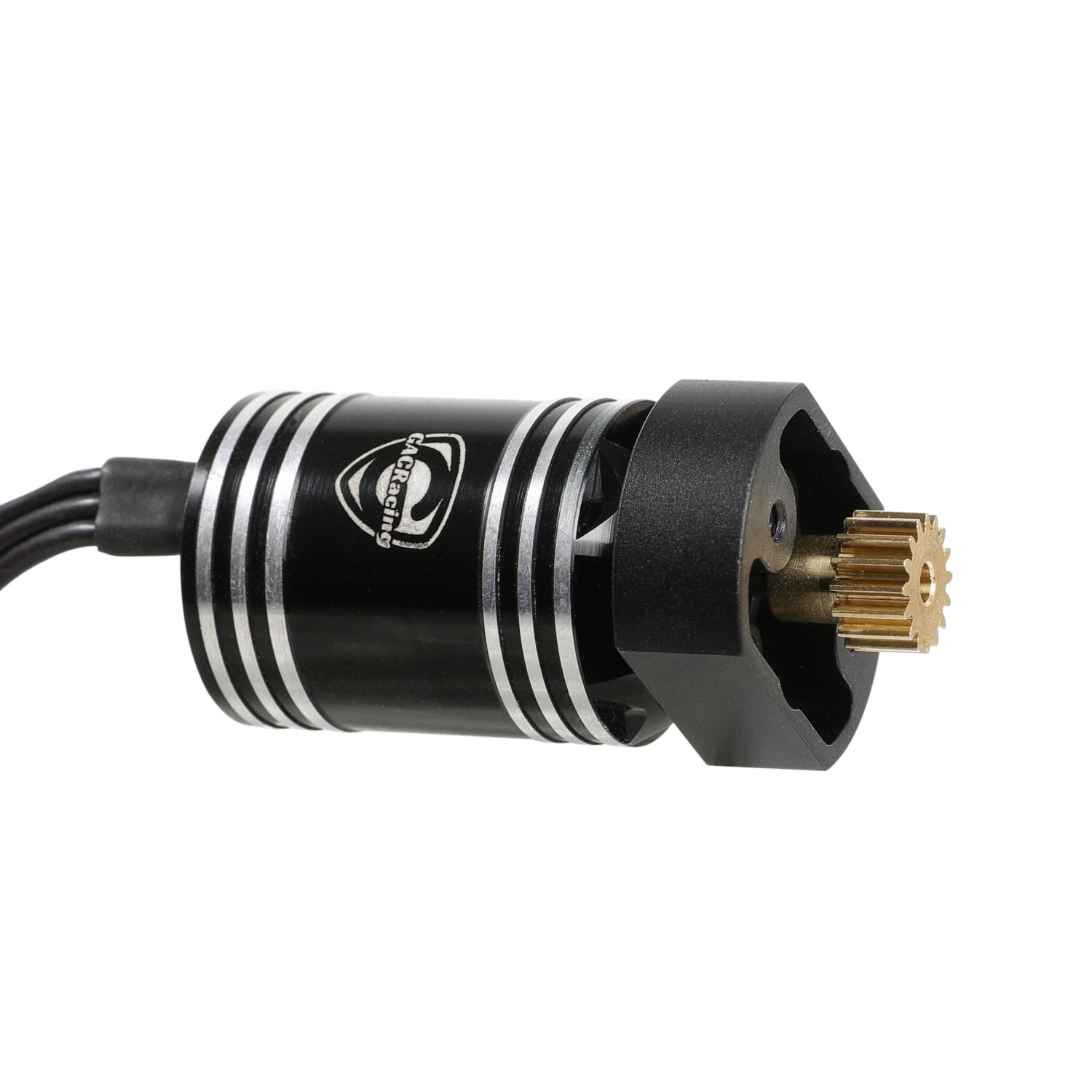

·(1) GM1825 Brushless Motor

·(1) 16T Brass Pinion Gears

·(1) G40 Brushless ESC
