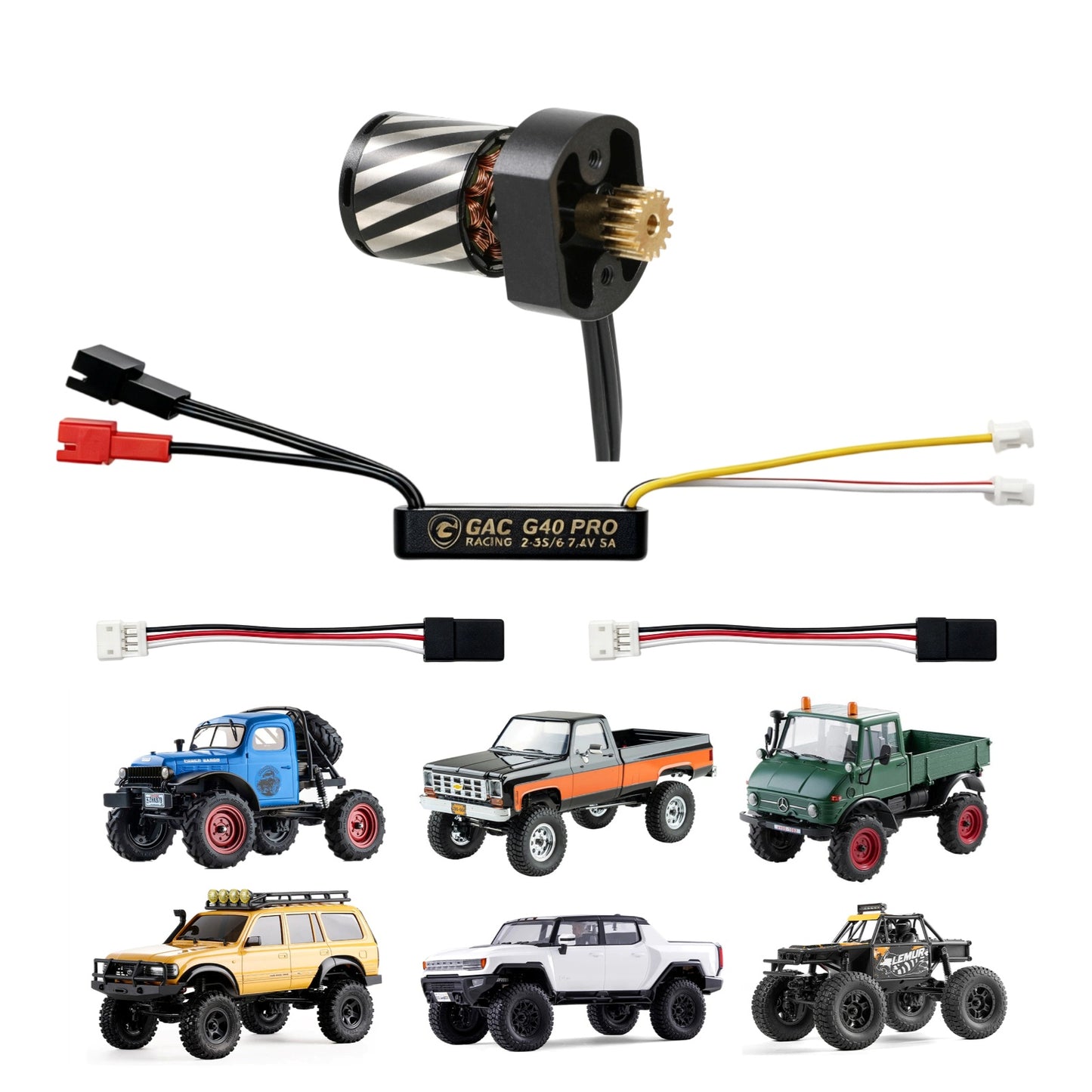

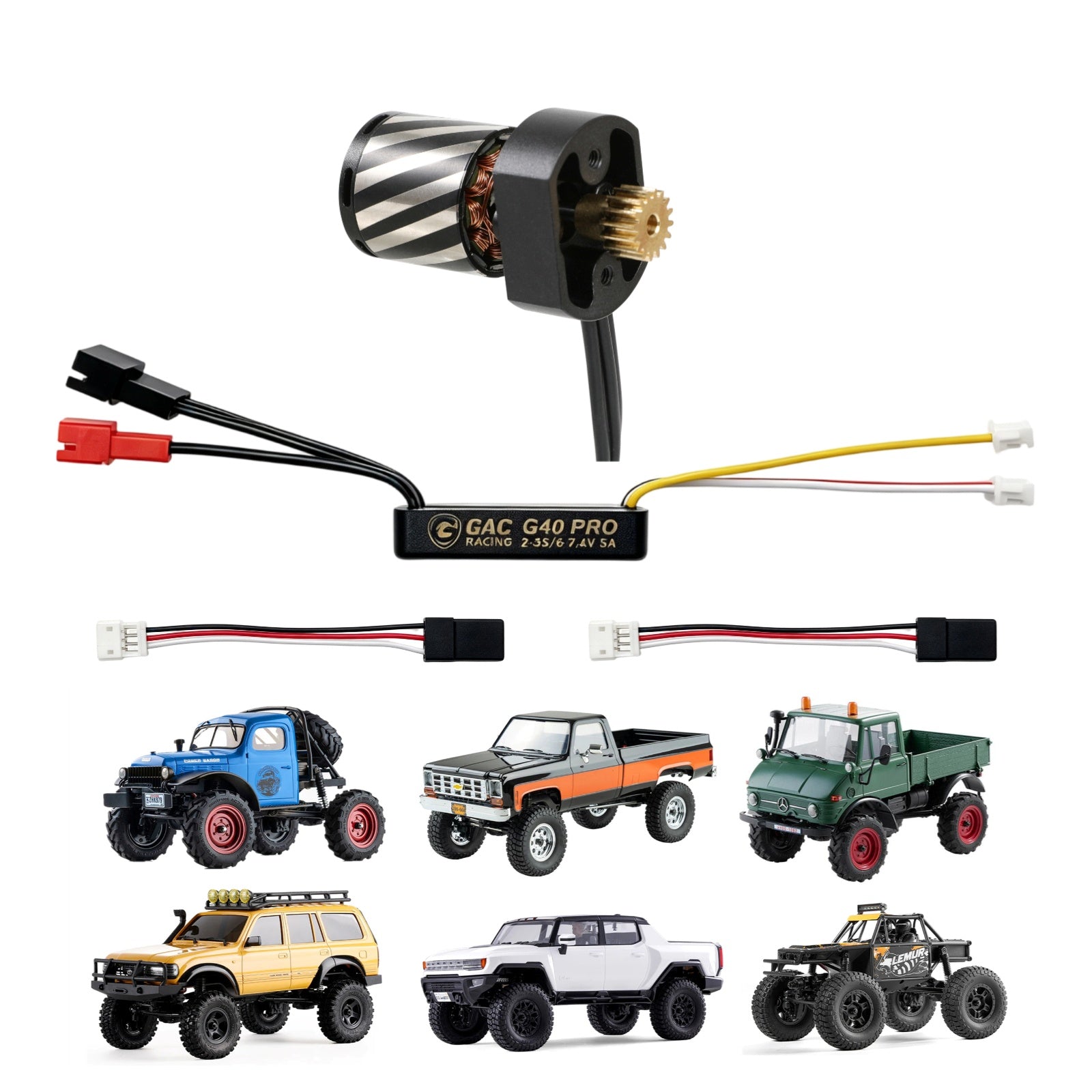

GM1621 V2 and G40 PRO Power System for FCX24/18

GM1621 V2 and G40 PRO Power System for FCX24/18

Regular price $54.98 USD
Regular price Sale price $54.98 USD
Sale Sold out
Shipping calculated at checkout.

G40 PRO Nano ESC

Advanced FOC Technology. Precision Control. Built for Crawling.

Designed specifically for small-scale RC crawlers, the G40 PRO Nano ESC combines advanced FOC technology with intelligent tuning and versatile control features. Its optimized control algorithm delivers impressive low-speed torque and exceptionally smooth throttle response, giving you the precision and confidence needed to conquer challenging terrain.

1. Advanced FOC Field-Oriented Control Technology

More Torque. Smoother Control. Better Crawling Performance.

Powered by advanced FOC (Field-Oriented Control) technology, the G40 PRO Nano ESC features an optimized control algorithm designed specifically for small-scale crawling vehicles.

It delivers enhanced torque at low RPMs and exceptionally smooth motor operation, allowing for precise throttle control when navigating technical obstacles, climbing rocks, and tackling challenging terrain.

Experience greater control where it matters most.

2. Real-Time Adjustable Drag Brake

Take Full Control of Your Crawling Experience.

Fine-tune your drag brake strength on the fly to match different terrains and driving conditions.

Simply connect the yellow signal wire to an auxiliary receiver channel, and adjust the drag brake strength directly through your transmitter.

No need to stop or reconnect your phone. Enjoy instant control whenever you need it.

3. Built-In Bluetooth Wireless Tuning

Your Settings. Your Way. Anytime.

With built-in Bluetooth connectivity, the G40 PRO Nano ESC allows you to fine-tune ESC parameters wirelessly through the GACRacing App.

Easily access and adjust your settings directly from your smartphone, making it simple to customize performance to match your driving style and terrain.

No additional programming card required.

4. IP67 Waterproof & Dustproof Protection

Ready for Any Terrain.

Built to handle the demands of outdoor crawling, the G40 PRO Nano ESC features IP67-rated waterproof and dustproof protection.

Whether you’re driving through muddy trails, dusty environments, or wet conditions, its protective design helps keep your electronics safe and your crawler performing reliably.

5. Powerful Built-In 5A BEC

More Power. Greater Compatibility.

Equipped with a high-performance switching BEC, the G40 PRO Nano ESC delivers up to 5A of output current to reliably power your receiver and servo.

Choose between selectable 6V and 7.4V output to support a wide range of standard and high-voltage servos.

BEC voltage can be conveniently adjusted through the GACRacing App.



G40 PRO Nano ESC Specifications

Specification Details
Input Voltage 2S–3S LiPo
Control Technology FOC Field-Oriented Control
BEC Output Voltage 6V / 7.4V Selectable
BEC Maximum Current 5A
Wireless Tuning Built-in Bluetooth
Mobile App GACRacing App (iOS & Android)
Waterproof Rating IP67
Adjustable Drag Brake Real-Time via Receiver
Required Radio Equipment Standard 2-Channel Transmitter & Receiver



GM1621 V2 Motor Specifications:

-KV(RPMMOTOR): 3500KV

-VOLTAGE(BATTERY): 2S~3S

-MOTOR POLES: 14

-CONNECTION TYPE: PH2.0 3P

-MOTOR SIZE: 16X21MM

-SHAFT/EXTEND LENGTH: φ2x9mm

-WEIGHT: 15g

-Gear ratio: ≥80
