Advanced FOC Field-Oriented Control technology
"G40 PRO Nano ESC" is tailored specifically for small crawling vehicles. The newly optimized program algorithm enables it to deliver greater torque at low speeds, ensuring smooth operation. （The parameters can be adjusted through the built-in Bluetooth）
Adjust drag brake force in real time
The drag brake, which can be adjusted in real-time, connects the yellow signal cable to the open channel of (a certain device or system) to adjust the drag braking force in real-time through the receiver. It allows for the adjustment of drag braking force during flight to meet various application environments.
waterproof capability
The ESC's protection level reaches IP67. Able to easily cope with various competition environments such as rain, dust, and sand with its excellent waterproof and dust-proof protection.
Built-in BEC
The powerful switch mode BEC has a maximum current of 5A.The output voltage is switchable between 6V/7.4V and is suitable various standard/high-voltage servos on the market.（Selectable BEC voltage through the GACRacing App）

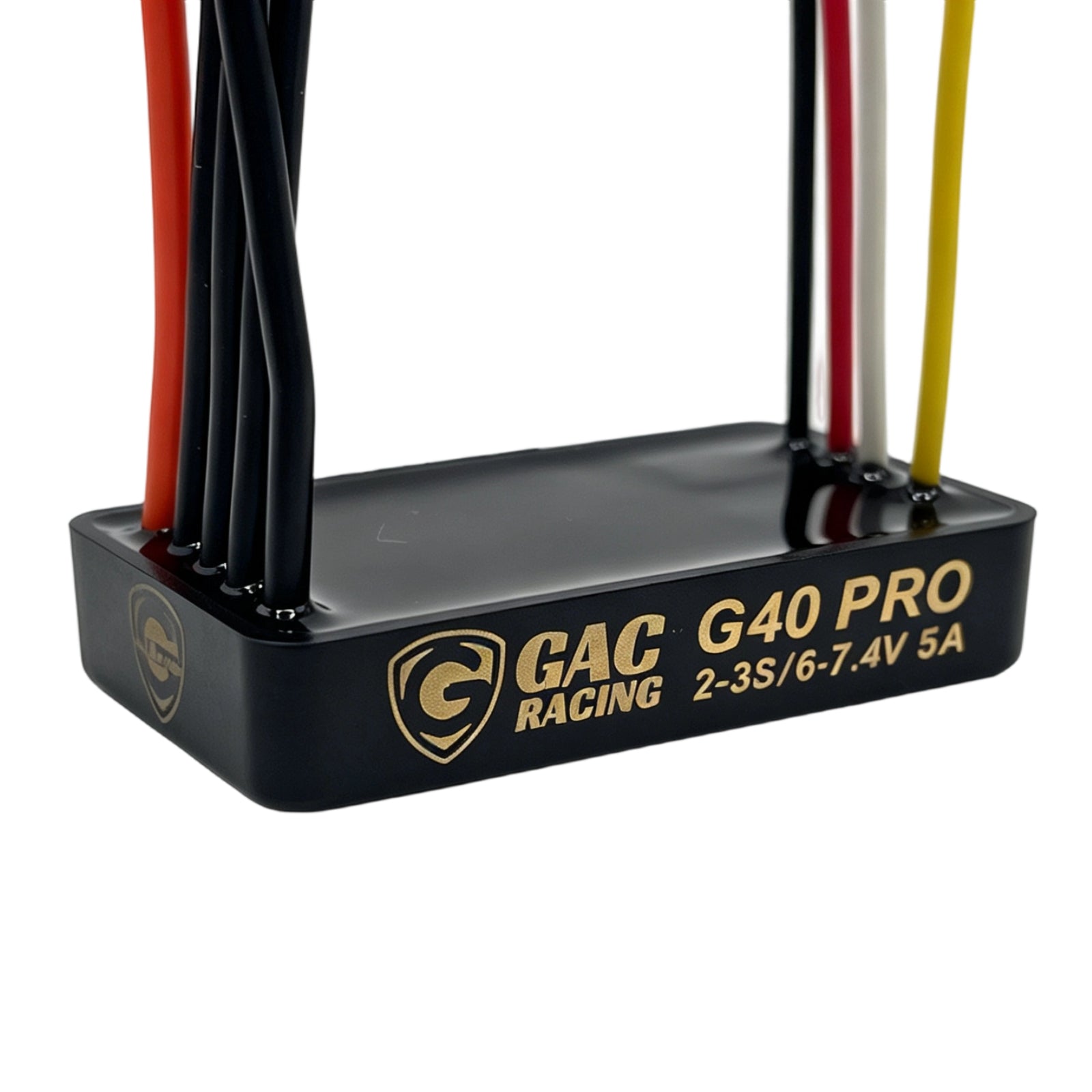

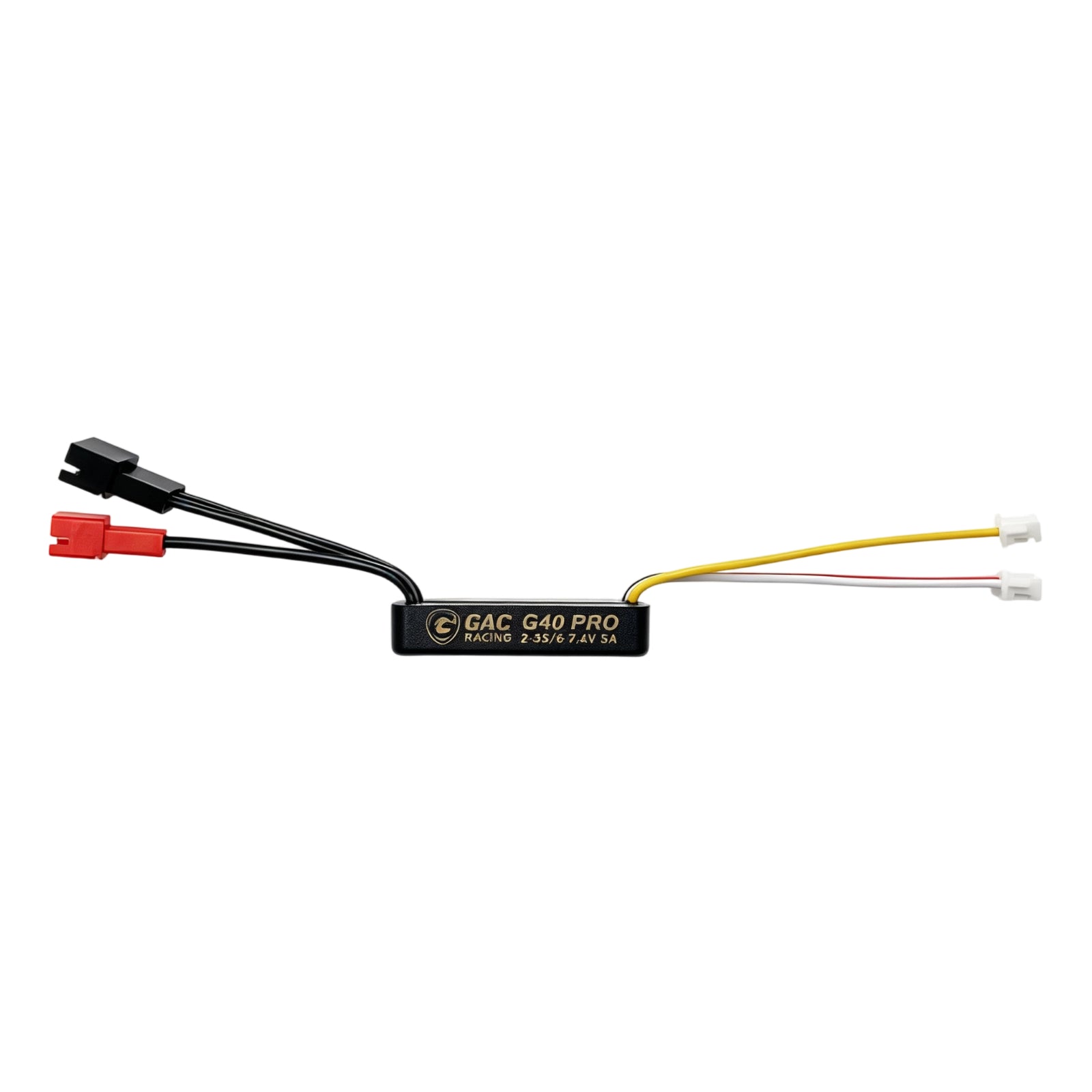

G40 PRO Nano ESC Specifications
Input Voltage: 2S to 3S LiPo
BEC Output: Selectable 6V or 7.4V
Wireless Tuning: Built-in
Mobile App: GACRacing App for iOS and Android
Required Equipment

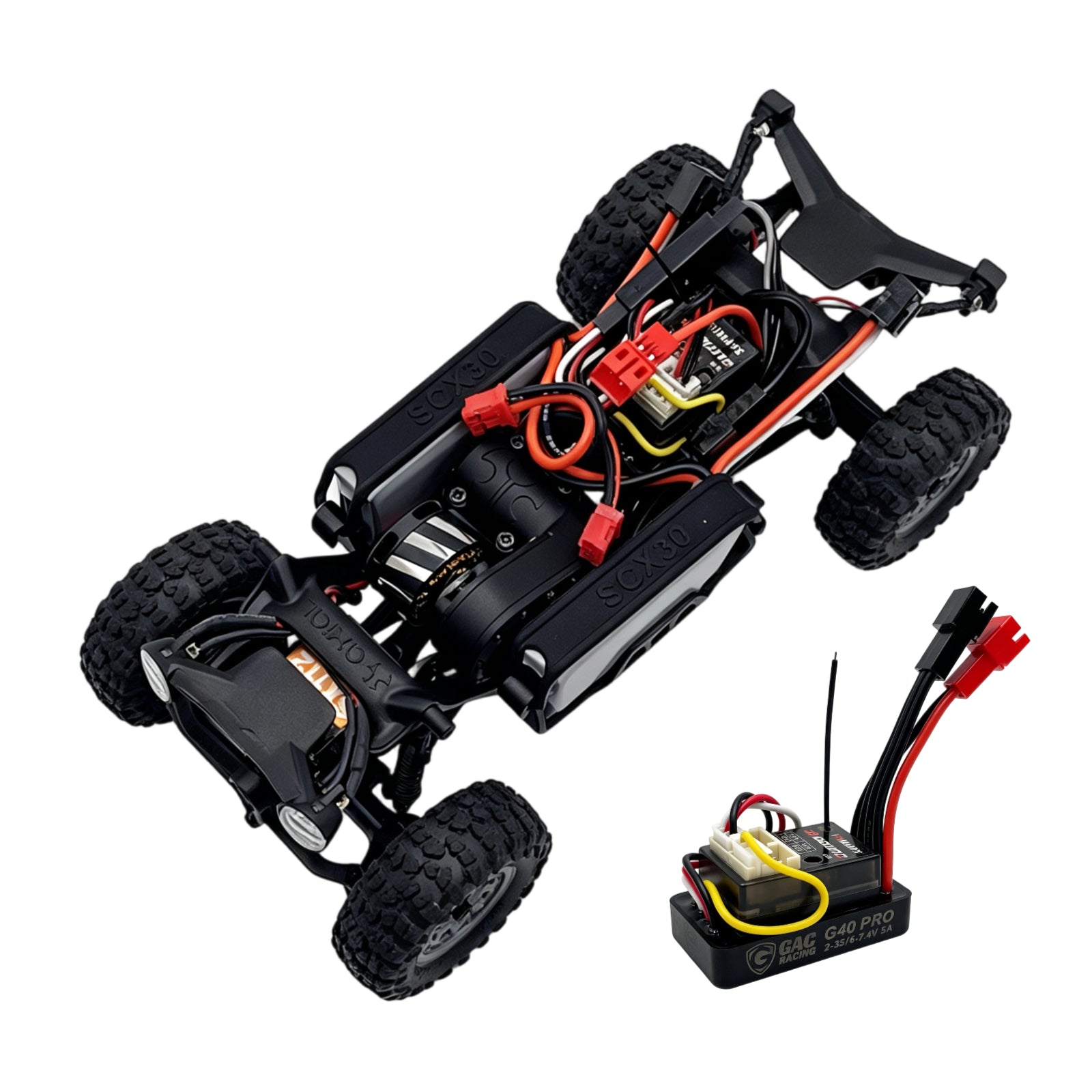

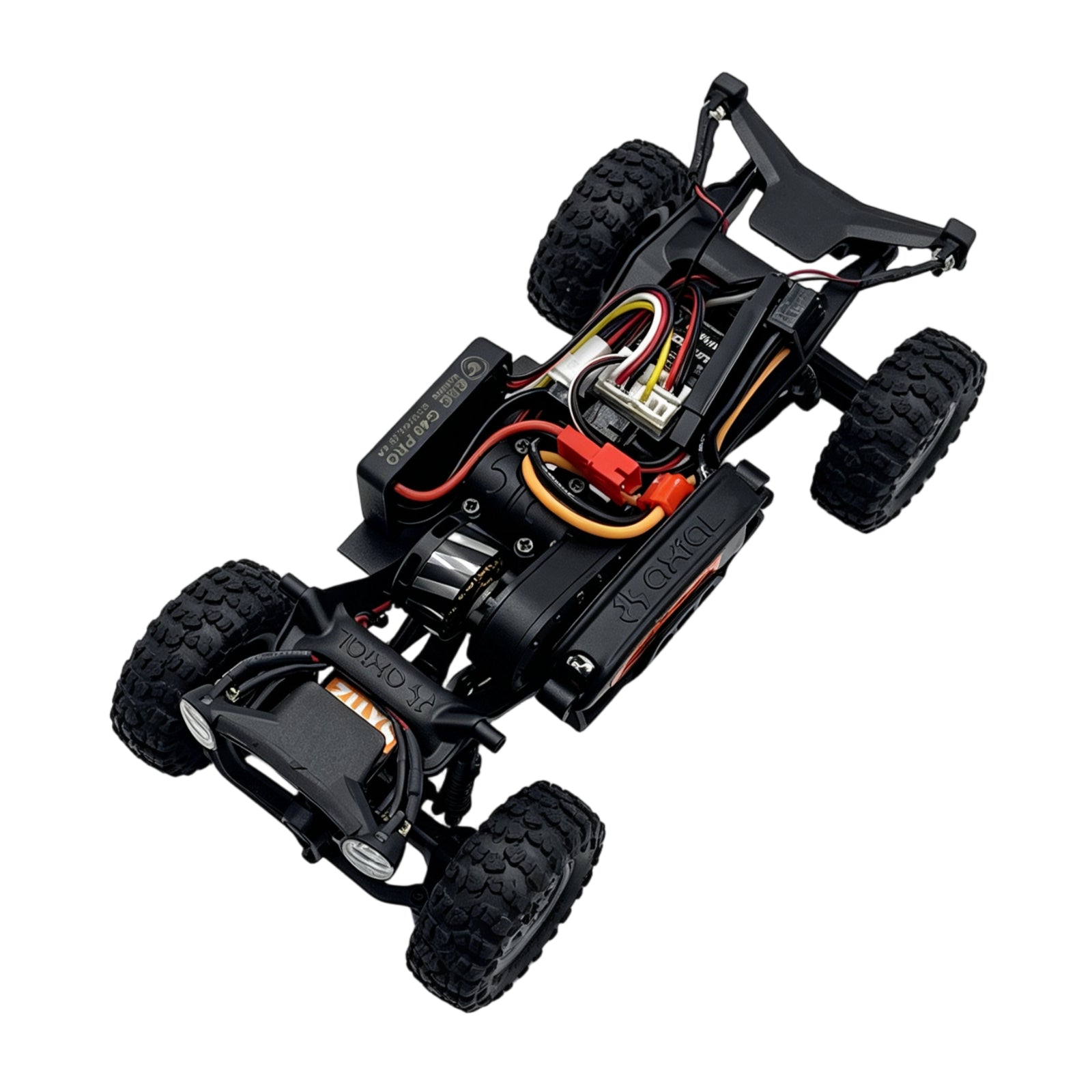

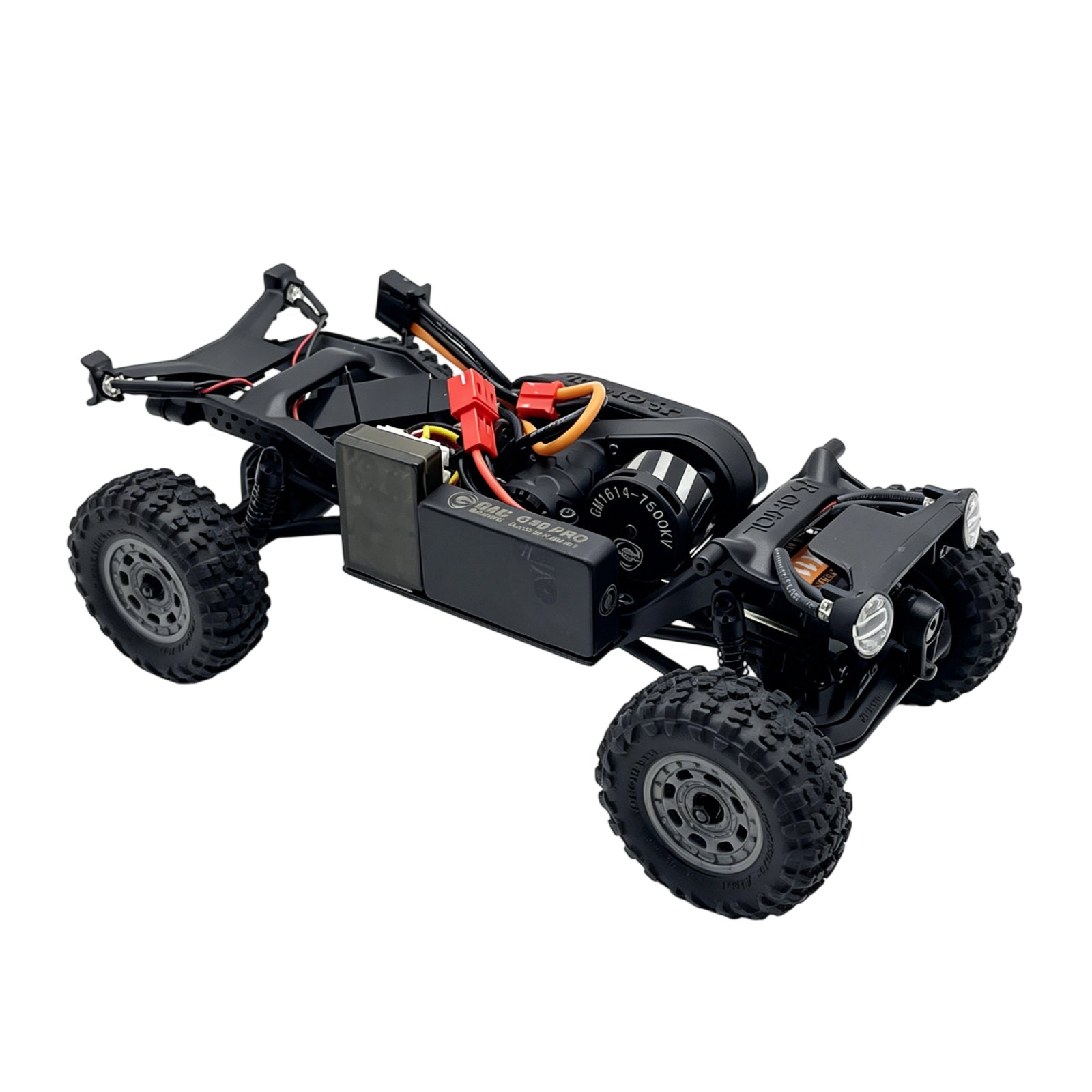

Compatible with the stock SCX30 motor plate
With 0.3MOD 11T Steel Pinion Gears

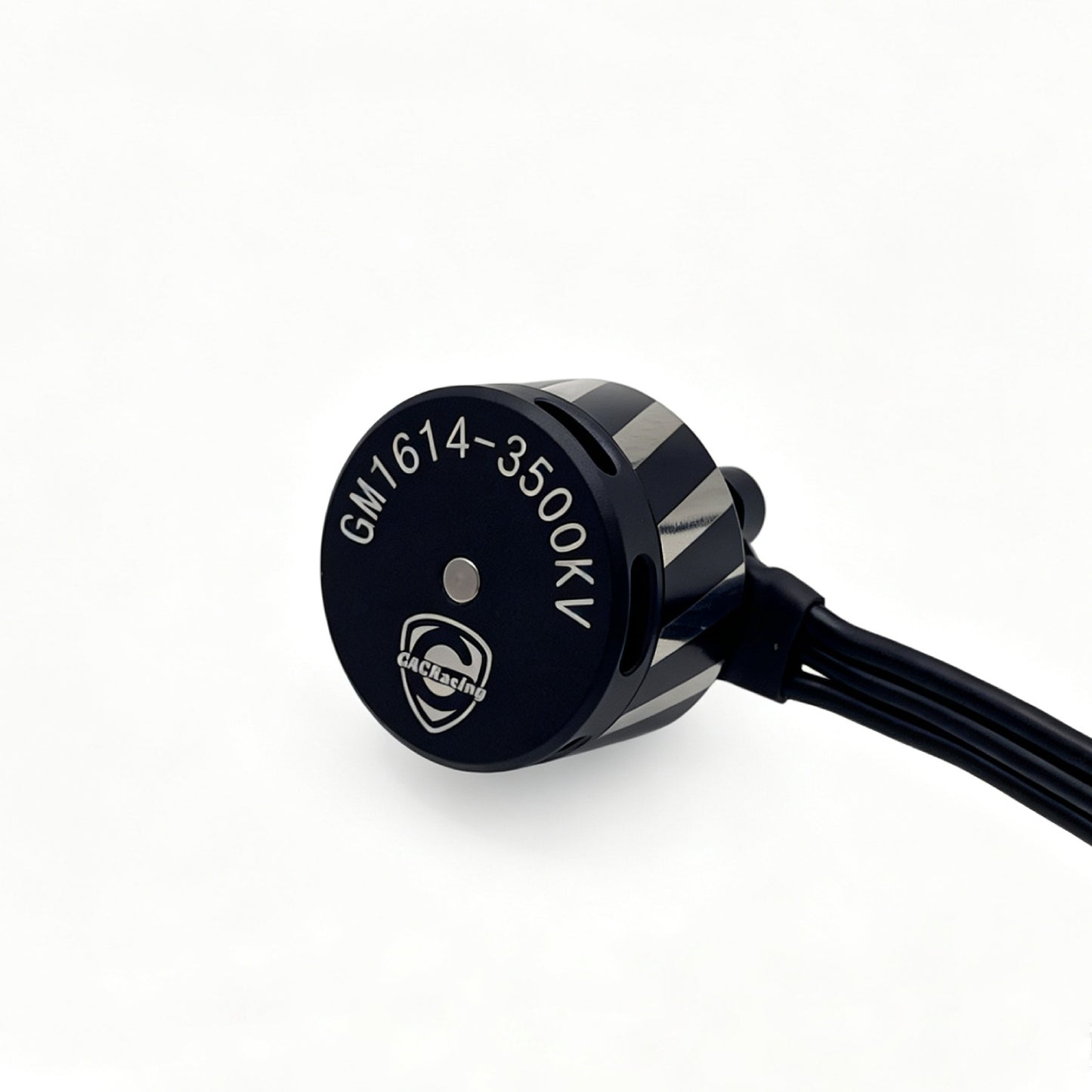

GM1614 Specifications：
-KV(RPM/MOTOR): 3500KV/7500KV
-VOLTAGE(BATTERY): 2S~3S
-MOTOR POLES: 14
-CONNECTION TYPE: PH2.0 3P
-Gear ratio: ≥100
