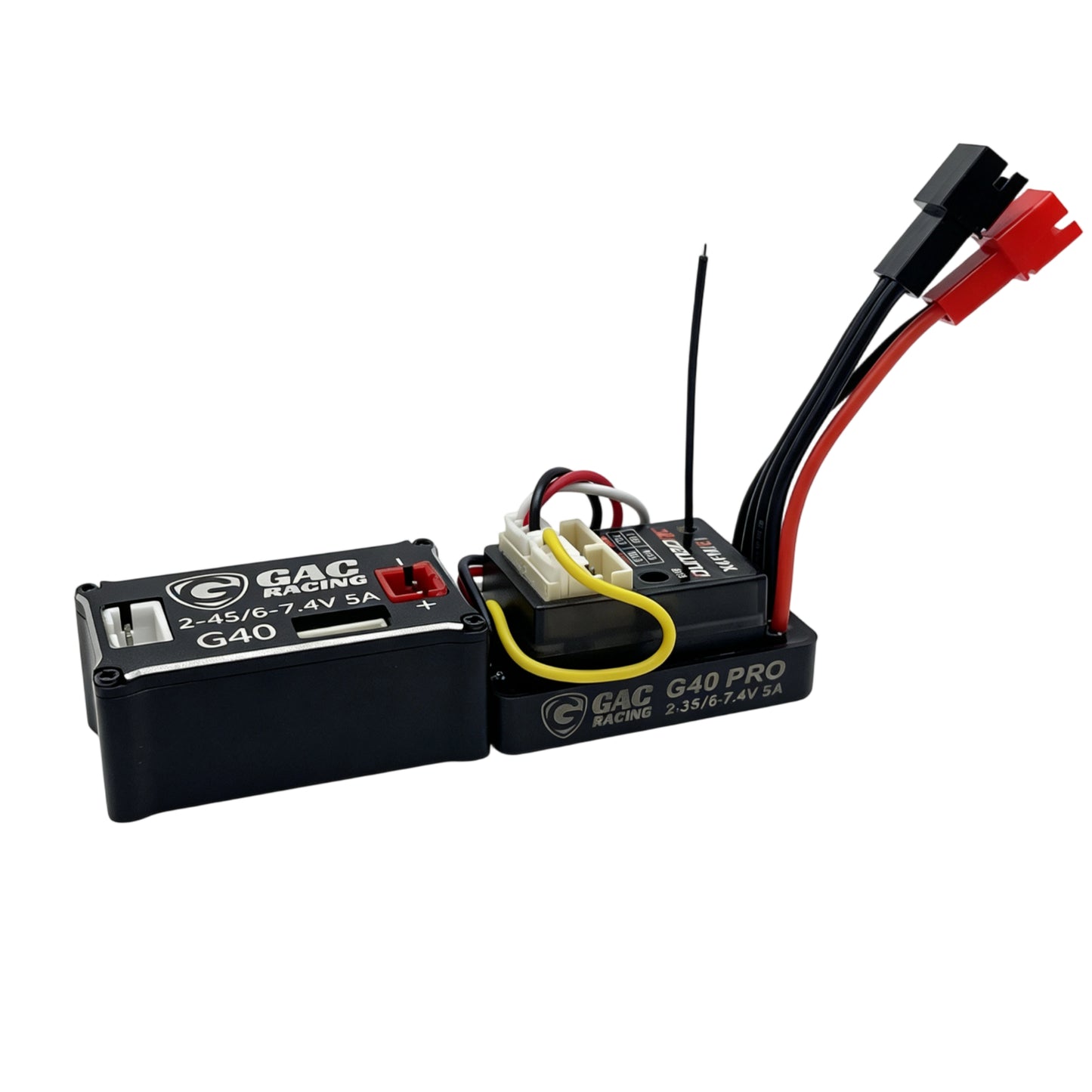

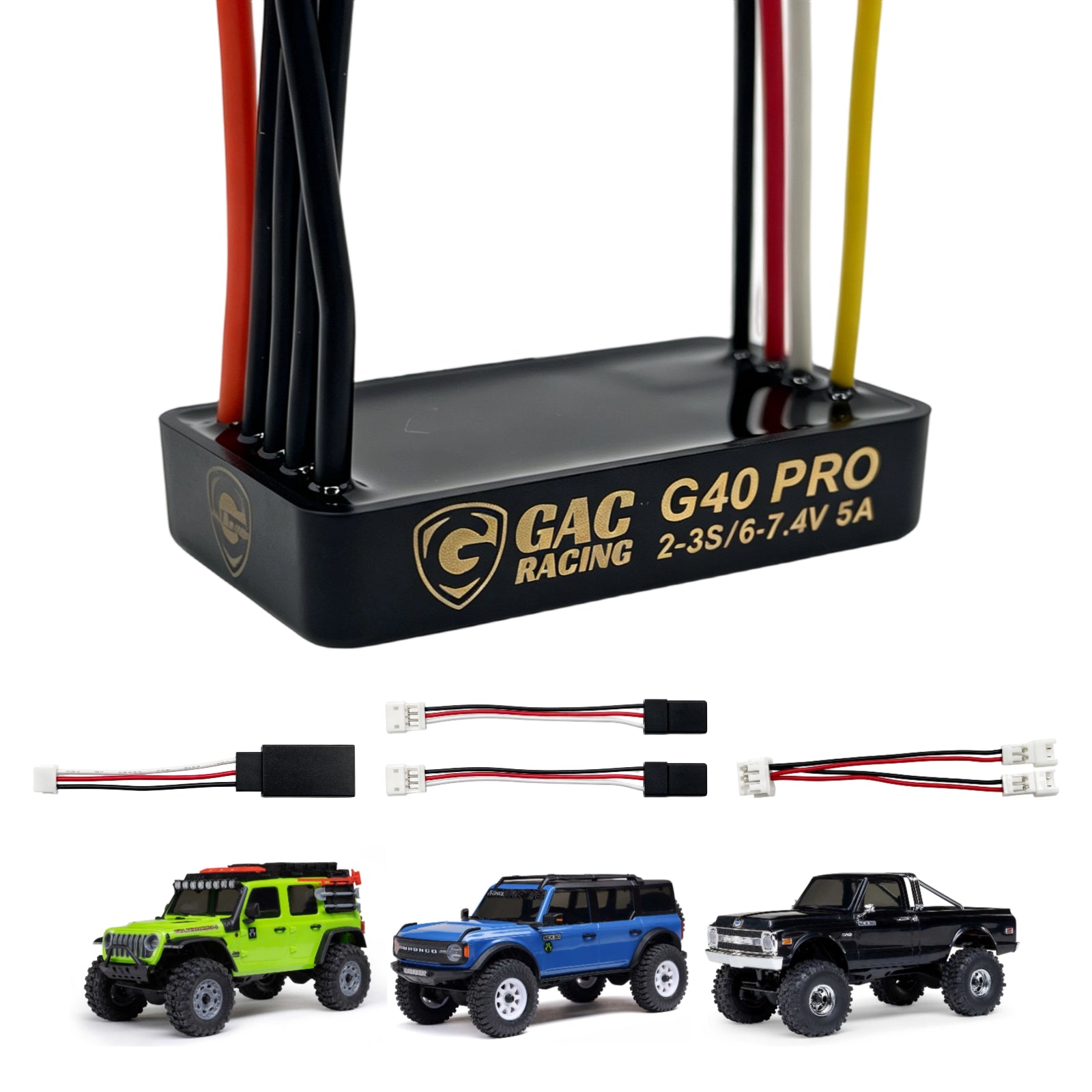

G40 PRO 40A Brushless Nano ESC For SCX30

Advanced FOC Field-Oriented Control technology

"G40 PRO Nano ESC" is tailored specifically for small crawling vehicles. The newly optimized program algorithm enables it to deliver greater torque at low speeds, ensuring smooth operation. （The parameters can be adjusted through the built-in Bluetooth）

Adjust drag brake force in real time

The drag brake, which can be adjusted in real-time, connects the yellow signal cable to the open channel of (a certain device or system) to adjust the drag braking force in real-time through the receiver. It allows for the adjustment of drag braking force during flight to meet various application environments.

waterproof capability

The ESC's protection level reaches IP67. Able to easily cope with various competition environments such as rain, dust, and sand with its excellent waterproof and dust-proof protection.

Built-in BEC

The powerful switch mode BEC has a maximum current of 5A.The output voltage is switchable between 6V/7.4V and is suitable various standard/high-voltage servos on the market.（Selectable BEC voltage through the GACRacing App）

G40 PRO Nano ESC Specifications

Input Voltage: 2S to 3S LiPo

BEC Output: Selectable 6V or 7.4V

Wireless Tuning: Built-in

Mobile App: GACRacing App for iOS and Android

Required Equipment

• Standard 2-channel
